Ubuntu20.04安装配置运行DynaSLAM

DynaSLAM结合Mask_RCNN和多视图几何，在ORB-SLAM2的基础上去除动态特征，因此在Ubuntu 20.04配置ORB-SLAM2和ORB-SLAM3运行环境+ROS实时运行ORB-SLAM2+Gazebo仿真运行ORB-SLAM2+各种相关库的安装的基础环境下配置运行DynaSLAM

一、安装Anaconda

进入Anaconda官网，点击Download下载（Anaconda会根据访问网页所使用的系统下载对应的版本，比如我这里下载的是Anaconda3-2023.03-Linux-x86_64.sh）

在这里插入图片描述
安装Anaconda

bash Anaconda3-2023.03-Linux-x86_64.sh

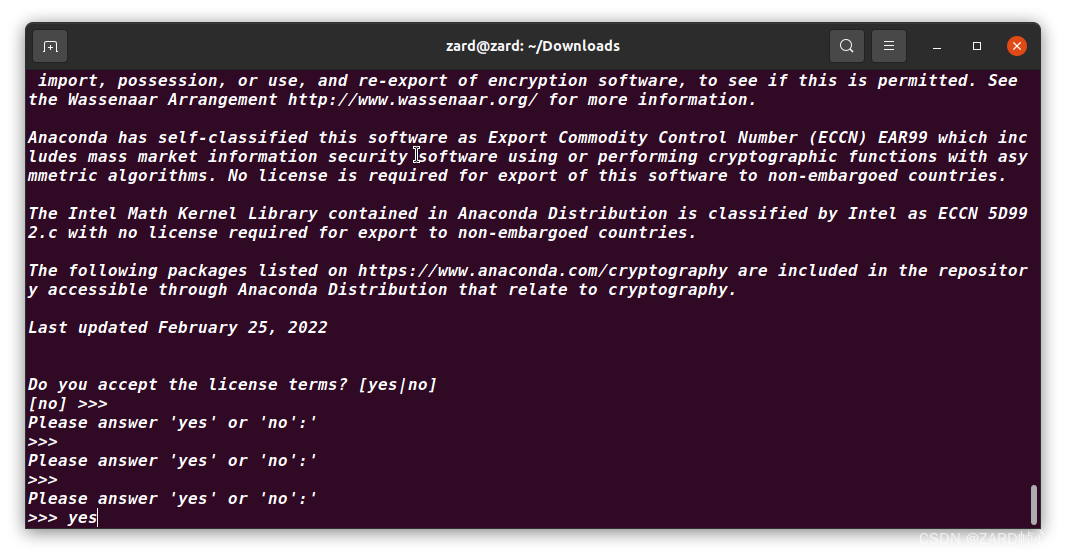

（1）查看安装协议，一直按Enter直到出现 Do you accept the license terms? [yes|no] ，输入yes即可继续安装；
（2）输入yes后会提示确认安装位置，这里点击Enter，默认即可；

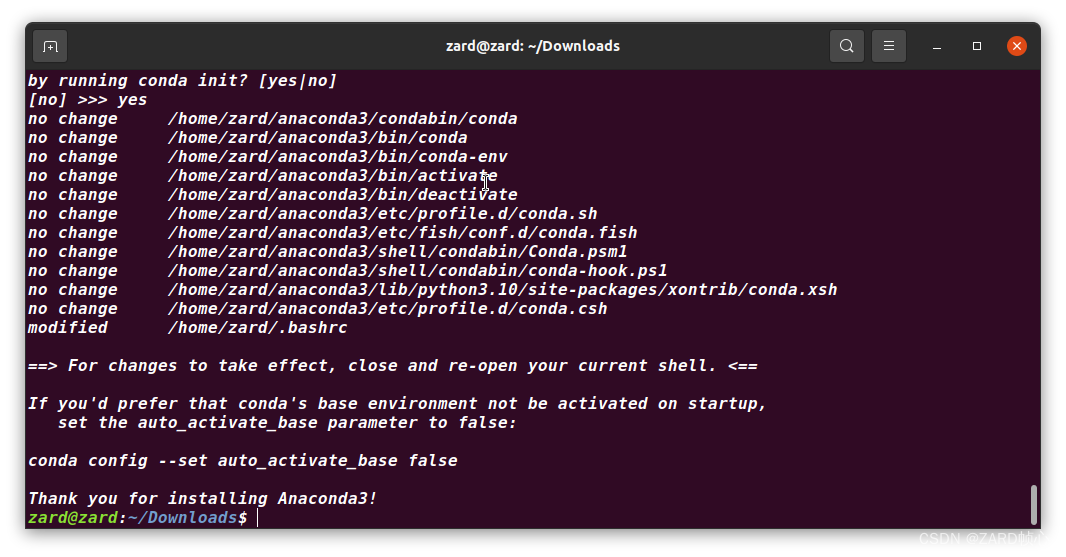

（3）初始化Anaconda，这一步只需要根据提示输入yes即可；

在这里插入图片描述

重启终端进入conda基础环境，按照提示，如果希望 conda 的基础环境在启动终端时不被激活，将 auto_activate_base 参数设置为 false：

conda config --set auto_activate_base false

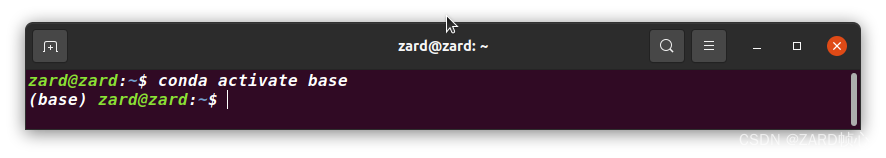

后面想要再进入conda的base环境，只需要使用conda指令激活：

conda activate base

在这里插入图片描述

conda常用命令：

创建conda环境

conda create --name 环境名 包名（多个包名用空格分隔）
# 例如：conda create --name my_env python=3.7 numpy pandas scipy

激活（切换）conda环境

conda activate 环境名
# 例如：conda activate bas

显示已创建的conda环境

conda info --envs
# 或者：conda info -e，亦或者conda env list

删除指定的conda环境，

# 通过环境名删除
conda remove --name 要删除的环境名 --all

# 通过指定环境文件位置删除（这个方法可以删除不同位置的同名环境）
conda remove -p 要删除的环境所在位置 --all
# 例如：conda remove -p /home/zard/anaconda3/envs/MaskRCNN --all

二、安装依赖

（1）安装boost库

sudo apt-get install libboost-all-dev

（2）Pangolin, OpenCV2 or 3 以及 Eigen3的安装参考：Ubuntu 20.04配置ORB-SLAM2和ORB-SLAM3运行环境+ROS实时运行ORB-SLAM+Gazebo仿真运行ORB-SLAM2+各种相关库的安装，这篇文章里安装的是 Eigen3.4.0，OpenCV3.4.5，接下来就基于他们安装

三、配置Mask_RCNN环境

在Anaconda虚拟环境下配置

# 创建一个虚拟环境
conda create -n MaskRCNN python=2.7
conda activate MaskRCNN
# 这一步可能报错，多尝试几次，可能会成功（非常玄学，可能是网络的问题）
pip install tensorflow==1.14.0
pip install keras==2.0.9
# 这一步可能提示numpy，pillow版本过低，升级numpy和pillow
# sudo pip install numpy==x.x.x
# sudo pip install pillow==x.x.x
pip install scikit-image
pip install pycocotools

下载DynaSLAM并测试环境

git clone  https://github.com/BertaBescos/DynaSLAM.git
cd DynaSLAM
python src/python/Check.py

如果输出：

Mask R-CNN is correctly working

就可以下一步了

四、安装DynaSLAM

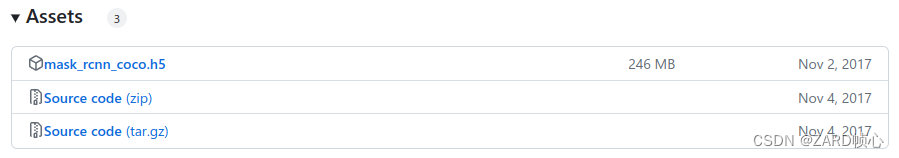

下载mask_rcnn_coco.h5文件，将其复制到DynaSLAM/src/python/下
在这里插入图片描述
Dynaslam源码中有些只适合opencv2.4，对于我们之前安装的opencv3.4.5需要修改dynaslam源码，并且为了避免出现段错误，也要修改部分内容，参考文章：关于运行DynaSLAM源码这档子事(OpenCV3.x版)

4.1 修改CMakeLists.txt

（1）DynaSLAM/CMakeLists.txt中

set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS}  -Wall  -O3 ")
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall   -O3 ")
# set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS}  -Wall  -O3 -march=native ")
# set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall   -O3 -march=native")
......................
#find_package(OpenCV 2.4.11 QUIET)
#if(NOT OpenCV_FOUND)
#    message("OpenCV > 2.4.11 not found.")
#    find_package(OpenCV 3.0 QUIET)
#    if(NOT OpenCV_FOUND)
#        message(FATAL_ERROR "OpenCV > 3.0 not found.")
#    endif()
#endif()

find_package(OpenCV 3.4 QUIET)
if(NOT OpenCV_FOUND)
    find_package(OpenCV 2.4 QUIET)
    if(NOT OpenCV_FOUND)
        message(FATAL_ERROR "OpenCV > 2.4.x not found.")
    endif()
endif()
......................
set(Python_ADDITIONAL_VERSIONS "2.7")
#This is to avoid detecting python 3
find_package(PythonLibs 2.7 EXACT REQUIRED)
if (NOT PythonLibs_FOUND)
    message(FATAL_ERROR "PYTHON LIBS not found.")
else()
    message("PYTHON LIBS were found!")
    message("PYTHON LIBS DIRECTORY: " ${PYTHON_LIBRARY} ${PYTHON_INCLUDE_DIRS})
endif()
......................
#find_package(Eigen3 3.1.0 REQUIRED)
find_package(Eigen3 3 REQUIRED)

（2）DynaSLAM/Thirdparty/DBoW/CMakeLists.txt中

#set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS}  -Wall  -O3 -march=native ")
#set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall  -O3 -march=native")
set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS}  -Wall  -O3 ")
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall  -O3 ")
......................
# find_package(OpenCV 3.0 QUIET)
find_package(OpenCV 3.4 QUIET)

（3）DynaSLAM/Thirdparty/g2o/CMakeLists.txt中

#SET(CMAKE_CXX_FLAGS_RELEASE "${CMAKE_CXX_FLAGS_RELEASE} -O3 -march=native")
#SET(CMAKE_C_FLAGS_RELEASE "${CMAKE_C_FLAGS_RELEASE} -O3 -march=native")
SET(CMAKE_CXX_FLAGS_RELEASE "${CMAKE_CXX_FLAGS_RELEASE} -O3 ")
SET(CMAKE_C_FLAGS_RELEASE "${CMAKE_C_FLAGS_RELEASE} -O3 ")
......................
#FIND_PACKAGE(Eigen3 3.1.0 REQUIRED)
FIND_PACKAGE(Eigen3 3 REQUIRED)

4.2 修改源码

（1）include/Conversion.h

// cv::Mat toMat(const PyObject* o);
   cv::Mat toMat(PyObject* o);

（2）src/Conversion.cc

/**
 * This file is part of DynaSLAM.
 * Copyright (C) 2018 Berta Bescos <bbescos at unizar dot es> (University of Zaragoza)
 * For more information see <https://github.com/bertabescos/DynaSLAM>.
 *
 */

#include "Conversion.h"
#include <iostream>

namespace DynaSLAM
{

    static void init()
    {
        import_array();
    }

    static int failmsg(const char *fmt, ...)
    {
        char str[1000];

        va_list ap;
        va_start(ap, fmt);
        vsnprintf(str, sizeof(str), fmt, ap);
        va_end(ap);

        PyErr_SetString(PyExc_TypeError, str);
        return 0;
    }

    class PyAllowThreads
    {
    public:
        PyAllowThreads() : _state(PyEval_SaveThread()) {}
        ~PyAllowThreads()
        {
            PyEval_RestoreThread(_state);
        }

    private:
        PyThreadState *_state;
    };

    class PyEnsureGIL
    {
    public:
        PyEnsureGIL() : _state(PyGILState_Ensure()) {}
        ~PyEnsureGIL()
        {
            // std::cout << "releasing"<< std::endl;
            PyGILState_Release(_state);
        }

    private:
        PyGILState_STATE _state;
    };

    using namespace cv;

    static PyObject *failmsgp(const char *fmt, ...)
    {
        char str[1000];

        va_list ap;
        va_start(ap, fmt);
        vsnprintf(str, sizeof(str), fmt, ap);
        va_end(ap);

        PyErr_SetString(PyExc_TypeError, str);
        return 0;
    }

    class NumpyAllocator : public MatAllocator
    {
    public:
#if (CV_MAJOR_VERSION < 3)
        NumpyAllocator()
        {
        }
        ~NumpyAllocator() {}

        void allocate(int dims, const int *sizes, int type, int *&refcount,
                      uchar *&datastart, uchar *&data, size_t *step)
        {

            // PyEnsureGIL gil;

            int depth = CV_MAT_DEPTH(type);
            int cn = CV_MAT_CN(type);

            const int f = (int)(sizeof(size_t) / 8);
            int typenum = depth == CV_8U ? NPY_UBYTE : depth == CV_8S ? NPY_BYTE
                                                   : depth == CV_16U  ? NPY_USHORT
                                                   : depth == CV_16S  ? NPY_SHORT
                                                   : depth == CV_32S  ? NPY_INT
                                                   : depth == CV_32F  ? NPY_FLOAT
                                                   : depth == CV_64F  ? NPY_DOUBLE
                                                                      : f * NPY_ULONGLONG + (f ^ 1) * NPY_UINT;
            int i;

            npy_intp _sizes[CV_MAX_DIM + 1];
            for (i = 0; i < dims; i++)
            {
                _sizes[i] = sizes[i];
            }

            if (cn > 1)
            {
                _sizes[dims++] = cn;
            }
            PyObject *o = PyArray_SimpleNew(dims, _sizes, typenum);
            if (!o)
            {

                CV_Error_(CV_StsError, ("The numpy array of typenum=%d, ndims=%d can not be created", typenum, dims));
            }
            refcount = refcountFromPyObject(o);

            npy_intp *_strides = PyArray_STRIDES(o);
            for (i = 0; i < dims - (cn > 1); i++)
                step[i] = (size_t)_strides[i];

            datastart = data = (uchar *)PyArray_DATA(o);
        }

        void deallocate(int *refcount, uchar *, uchar *)
        {
            // PyEnsureGIL gil;
            if (!refcount)
                return;
            PyObject *o = pyObjectFromRefcount(refcount);
            Py_INCREF(o);
            Py_DECREF(o);
        }
#else

        NumpyAllocator()
        {
            stdAllocator = Mat::getStdAllocator();
        }
        ~NumpyAllocator()
        {
        }

        UMatData *allocate(PyObject *o, int dims, const int *sizes, int type,
                           size_t *step) const
        {
            UMatData *u = new UMatData(this);
            u->data = u->origdata = (uchar *)PyArray_DATA((PyArrayObject *)o);
            npy_intp *_strides = PyArray_STRIDES((PyArrayObject *)o);
            for (int i = 0; i < dims - 1; i++)
                step[i] = (size_t)_strides[i];
            step[dims - 1] = CV_ELEM_SIZE(type);
            u->size = sizes[0] * step[0];
            u->userdata = o;
            return u;
        }

        UMatData *allocate(int dims0, const int *sizes, int type, void *data,
                           size_t *step, int flags, UMatUsageFlags usageFlags) const
        {
            if (data != 0)
            {
                CV_Error(Error::StsAssert, "The data should normally be NULL!");
                // probably this is safe to do in such extreme case
                return stdAllocator->allocate(dims0, sizes, type, data, step, flags,
                                              usageFlags);
            }
            PyEnsureGIL gil;

            int depth = CV_MAT_DEPTH(type);
            int cn = CV_MAT_CN(type);
            const int f = (int)(sizeof(size_t) / 8);
            int typenum =
                depth == CV_8U ? NPY_UBYTE : depth == CV_8S ? NPY_BYTE
                                         : depth == CV_16U  ? NPY_USHORT
                                         : depth == CV_16S  ? NPY_SHORT
                                         : depth == CV_32S  ? NPY_INT
                                         : depth == CV_32F  ? NPY_FLOAT
                                         : depth == CV_64F  ? NPY_DOUBLE
                                                            : f * NPY_ULONGLONG + (f ^ 1) * NPY_UINT;
            int i, dims = dims0;
            cv::AutoBuffer<npy_intp> _sizes(dims + 1);
            for (i = 0; i < dims; i++)
                _sizes[i] = sizes[i];
            if (cn > 1)
                _sizes[dims++] = cn;
            PyObject *o = PyArray_SimpleNew(dims, _sizes, typenum);
            if (!o)
                CV_Error_(Error::StsError,
                          ("The numpy array of typenum=%d, ndims=%d can not be created", typenum, dims));
            return allocate(o, dims0, sizes, type, step);
        }

        bool allocate(UMatData *u, int accessFlags,
                      UMatUsageFlags usageFlags) const
        {
            return stdAllocator->allocate(u, accessFlags, usageFlags);
        }

        void deallocate(UMatData *u) const
        {
            if (u)
            {
                PyEnsureGIL gil;
                PyObject *o = (PyObject *)u->userdata;
                Py_XDECREF(o);
                delete u;
            }
        }

        const MatAllocator *stdAllocator;
#endif
    };

    NumpyAllocator g_numpyAllocator;

    NDArrayConverter::NDArrayConverter() { init(); }

    void NDArrayConverter::init()
    {
        import_array();
    }

    cv::Mat NDArrayConverter::toMat(PyObject *o)
    {
        cv::Mat m;

        if (!o || o == Py_None)
        {
            if (!m.data)
                m.allocator = &g_numpyAllocator;
        }

        if (!PyArray_Check(o))
        {
            failmsg("toMat: Object is not a numpy array");
        }

        int typenum = PyArray_TYPE(o);
        int type = typenum == NPY_UBYTE ? CV_8U : typenum == NPY_BYTE                     ? CV_8S
                                              : typenum == NPY_USHORT                     ? CV_16U
                                              : typenum == NPY_SHORT                      ? CV_16S
                                              : typenum == NPY_INT || typenum == NPY_LONG ? CV_32S
                                              : typenum == NPY_FLOAT                      ? CV_32F
                                              : typenum == NPY_DOUBLE                     ? CV_64F
                                                                                          : -1;

        if (type < 0)
        {
            failmsg("toMat: Data type = %d is not supported", typenum);
        }

        int ndims = PyArray_NDIM(o);

        if (ndims >= CV_MAX_DIM)
        {
            failmsg("toMat: Dimensionality (=%d) is too high", ndims);
        }

        int size[CV_MAX_DIM + 1];
        size_t step[CV_MAX_DIM + 1], elemsize = CV_ELEM_SIZE1(type);
        const npy_intp *_sizes = PyArray_DIMS(o);
        const npy_intp *_strides = PyArray_STRIDES(o);
        bool transposed = false;

        for (int i = 0; i < ndims; i++)
        {
            size[i] = (int)_sizes[i];
            step[i] = (size_t)_strides[i];
        }

        if (ndims == 0 || step[ndims - 1] > elemsize)
        {
            size[ndims] = 1;
            step[ndims] = elemsize;
            ndims++;
        }

        if (ndims >= 2 && step[0] < step[1])
        {
            std::swap(size[0], size[1]);
            std::swap(step[0], step[1]);
            transposed = true;
        }

        if (ndims == 3 && size[2] <= CV_CN_MAX && step[1] == elemsize * size[2])
        {
            ndims--;
            type |= CV_MAKETYPE(0, size[2]);
        }

        if (ndims > 2)
        {
            failmsg("toMat: Object has more than 2 dimensions");
        }

        m = Mat(ndims, size, type, PyArray_DATA(o), step);

        if (m.data)
        {
#if (CV_MAJOR_VERSION < 3)
            m.refcount = refcountFromPyObject(o);
            m.addref(); // protect the original numpy array from deallocation
                        // (since Mat destructor will decrement the reference counter)
#else
            m.u = g_numpyAllocator.allocate(o, ndims, size, type, step);
            m.addref();
            Py_INCREF(o);
            // m.u->refcount = *refcountFromPyObject(o);
#endif
        };
        m.allocator = &g_numpyAllocator;

        if (transposed)
        {
            Mat tmp;
            tmp.allocator = &g_numpyAllocator;
            transpose(m, tmp);
            m = tmp;
        }
        return m;
    }

    PyObject *NDArrayConverter::toNDArray(const cv::Mat &m)
    {
        if (!m.data)
            Py_RETURN_NONE;
        Mat temp;
        Mat *p = (Mat *)&m;
#if (CV_MAJOR_VERSION < 3)
        if (!p->refcount || p->allocator != &g_numpyAllocator)
        {
            temp.allocator = &g_numpyAllocator;
            m.copyTo(temp);
            p = &temp;
        }
        p->addref();
        return pyObjectFromRefcount(p->refcount);
#else
        if (!p->u || p->allocator != &g_numpyAllocator)
        {
            temp.allocator = &g_numpyAllocator;
            m.copyTo(temp);
            p = &temp;
        }
        // p->addref();
        // return pyObjectFromRefcount(&p->u->refcount);
        PyObject *o = (PyObject *)p->u->userdata;
        Py_INCREF(o);
        return o;
#endif
    }
}

4.3 编译DynaSLAM

conda activate MaskRCNN
cd DynaSLAM
chmod +x build.sh
./build.sh

如果是master分支没有mono_carla.cc这个文件，需要注释掉

# add_executable(mono_carla
# Examples/Monocular/mono_carla.cc)
# target_link_libraries(mono_carla ${PROJECT_NAME})

报错fatal error: ndarrayobject.h: No such file or director，虚拟环境和Python3中均安装了numpy，但是Ubuntu自带的python2没有安装，但不能用pip，因为会安装到python3中，因此

sudo apt-get install python-numpy

报错：error: static assertion failed: std::map must have the same value_type as its allocator，老问题了，我安装ORB的那篇文章里写了，把ORB-SLAM2源码目录中include/LoopClosing.h文件中的

// typedef map<KeyFrame*,g2o::Sim3,std::less<KeyFrame*>,
//        Eigen::aligned_allocator<std::pair<const KeyFrame*, g2o::Sim3> > > KeyFrameAndPose;
//修改为：
typedef map<KeyFrame*,g2o::Sim3,std::less<KeyFrame*>,
        Eigen::aligned_allocator<std::pair<KeyFrame *const, g2o::Sim3> > > KeyFrameAndPose;

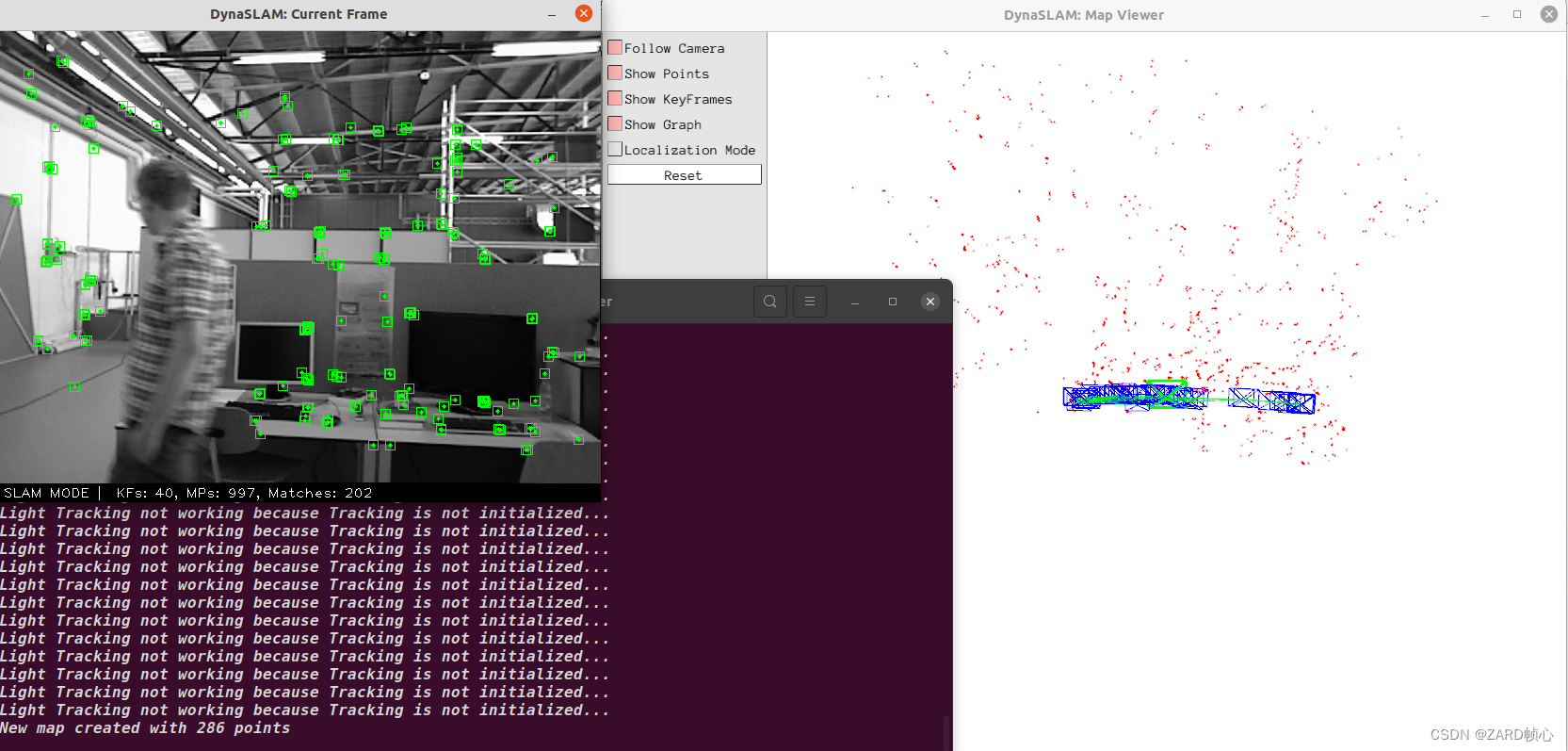

运行：

./Examples/RGB-D/rgbd_tum Vocabulary/ORBvoc.txt Examples/RGB-D/TUM3.yaml /XXX/tum_dataset/ /XXX/tum_dataset/associations.txt (path_to_masks) (path_to_output)

不给后面两个参数相当于运行ORB-SLAM2，如果只想用MaskRCNN的功能但不想存mask在path_to_masks那里就写为no_save，否则就给一个存Mask的文件夹地址

在这里插入图片描述
