模块来源

[2405.10530] CM-UNet: Hybrid CNN-Mamba UNet for Remote Sensing Image Semantic Segmentation

模块名称

CM-UNet

模块作用

提取多尺度特征信息

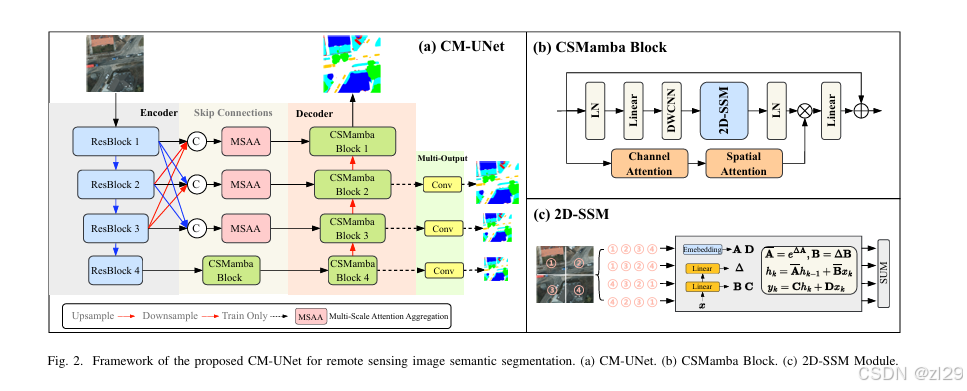

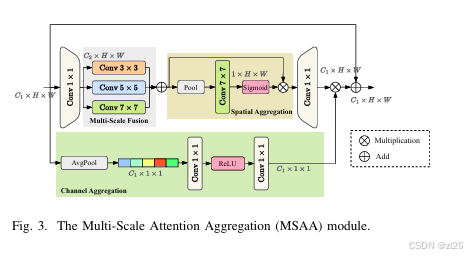

模块结构

模块代码

class ChannelAttentionModule(nn.Module):
    def __init__(self, in_channels, reduction=4):
        super(ChannelAttentionModule, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.max_pool = nn.AdaptiveMaxPool2d(1)
        self.fc = nn.Sequential(
            nn.Conv2d(in_channels, in_channels // reduction, 1, bias=False),
            nn.ReLU(inplace=True),
            nn.Conv2d(in_channels // reduction, in_channels, 1, bias=False)
        )
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = self.fc(self.avg_pool(x))
        max_out = self.fc(self.max_pool(x))
        out = avg_out + max_out
        return self.sigmoid(out)

class SpatialAttentionModule(nn.Module):
    def __init__(self, kernel_size=7):
        super(SpatialAttentionModule, self).__init__()
        self.conv1 = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = torch.mean(x, dim=1, keepdim=True)
        max_out, _ = torch.max(x, dim=1, keepdim=True)
        x = torch.cat([avg_out, max_out], dim=1)
        x = self.conv1(x)
        return self.sigmoid(x)



class FusionConv(nn.Module):
    def __init__(self, in_channels, out_channels, factor=4.0):
        super(FusionConv, self).__init__()
        dim = int(out_channels // factor)
        self.down = nn.Conv2d(in_channels, dim, kernel_size=1, stride=1)
        self.conv_3x3 = nn.Conv2d(dim, dim, kernel_size=3, stride=1, padding=1)
        self.conv_5x5 = nn.Conv2d(dim, dim, kernel_size=5, stride=1, padding=2)
        self.conv_7x7 = nn.Conv2d(dim, dim, kernel_size=7, stride=1, padding=3)
        self.spatial_attention = SpatialAttentionModule()
        self.channel_attention = ChannelAttentionModule(dim)
        self.up = nn.Conv2d(dim, out_channels, kernel_size=1, stride=1)
        self.down_2 = nn.Conv2d(in_channels, dim, kernel_size=1, stride=1)

    def forward(self, x1, x2, x4):

        x_fused = torch.cat([x1, x2, x4], dim=1)
        x_fused = self.down(x_fused)
        x_fused_c = x_fused * self.channel_attention(x_fused)
        x_3x3 = self.conv_3x3(x_fused)
        x_5x5 = self.conv_5x5(x_fused)
        x_7x7 = self.conv_7x7(x_fused)
        x_fused_s = x_3x3 + x_5x5 + x_7x7
        x_fused_s = x_fused_s * self.spatial_attention(x_fused_s)

        x_out = self.up(x_fused_s + x_fused_c)

        return x_out

class DownFusion(nn.Module):
    def __init__(self, in_channels, out_channels):
        super(DownFusion, self).__init__()
        self.fusion_conv = FusionConv(in_channels, out_channels)
        self.CAM = ChannelAttentionModule(out_channels)

    def forward(self, x1, x2):
        x_fused = torch.cat([x1, x2], dim=1)
        x_fused = self.fusion_conv(x_fused)

        x_fused =  + x_fused
        return x_fused

class MSAA(nn.Module):
    def __init__(self, in_channels, out_channels):
        super(MSAA, self).__init__()
        self.fusion_conv = FusionConv(in_channels, out_channels)

    def forward(self, x1, x2, x4, last=False):
        # # x2 是从低到高，x4是从高到低的设计，x2传递语义信息，x4传递边缘问题特征补充
        # x_1_2_fusion = self.fusion_1x2(x1, x2)
        # x_1_4_fusion = self.fusion_1x4(x1, x4)
        # x_fused = x_1_2_fusion + x_1_4_fusion
        x_fused = self.fusion_conv(x1, x2, x4)
        return x_fused

总结

CM-UNet，这是一种利用最新的 Mamba 架构进行 RS 语义分割的高效框架。这个设计通过采用新颖的 UNet 形结构来解决大规模 RS 图像中显著的目标变化问题。编码器利用 ResNet 提取文本信息，而解码器则使用 CSMamba 块来有效捕获全局长距离依赖关系。此外，CM-UNet还集成了多尺度注意力聚合 (MSAA) 模块和多输出增强功能，以进一步支持多尺度特征学习。CM-UNet 已在三个 RS 语义分割数据集中得到验证，实验结果证明了此方法的优越性。
